[Air conditioning hose] Thread type metal hose

The official website of Shanghai Songjiang shock absorber Group Co., Ltd. introduces to you: [Air conditioning hose] Thread type metal hose. Songjiang group provides air-conditioning hoses for many star hotels, universities, hospitals, airports and other high-end places, so that each fan can isolate vibration, reduce noise and provide a quiet and comfortable environment for everyone.

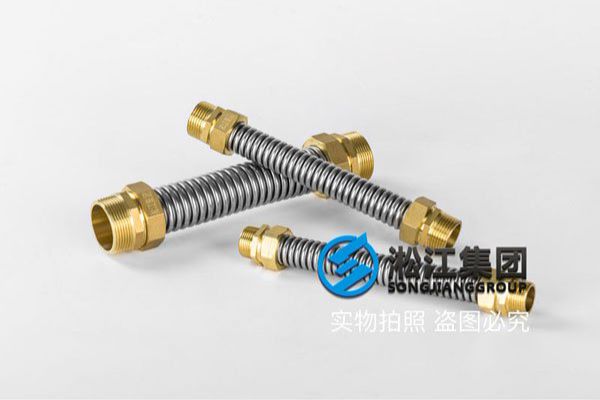

Thread type metal hose

The joints of metal hoses with a diameter of less than 50 mm are mostly threaded in the case of high working pressure. When the threads are tightened, the inner and outer taper surfaces of the two joints are Tight fit for sealing. The cone angle is generally 60 degrees, and 74 degrees are also useful. The structure has good sealing performance, but the concentricity of the two butt joints must be ensured during installation. In order to solve the problems of repeated disassembly, assembly and difficult concentricity that are often seen in practical projects, the joint can also be designed to match the taper surface and the ball head.
