JGD type low frequency rubber vibration isolator (applicable to 600 rpm water pump)

The official website of Shanghai Songjiang shock absorber Group Co., Ltd. introduces to you: JGD type low frequency rubber vibration isolator is composed of synthetic rubber and built-in metal parts, which is vulcanized into a cone. The rubber part is subject to shear force, has a large deformation range and low natural frequency. The content of natural rubber and cloud rubber reaches the national standard, with good noise reduction effect of about 50 %.

JGD type low frequency rubber vibration isolator

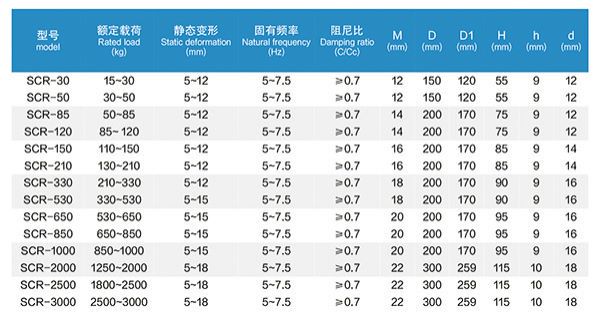

SCR type low-frequency rubber vibration isolator has a natural frequency of 5~8Hz within the specified load range, a damping ratio≥0.07, and a deformation up and down deviation within 20%. It is suitable for damping water pumps, fans, and compressors with a speed of 600 rpm. Especially suitable for shock absorption of ship equipment, suitable for: oil resistance, sea water resistance and sunlight resistance, temperature: -15~+60℃;
